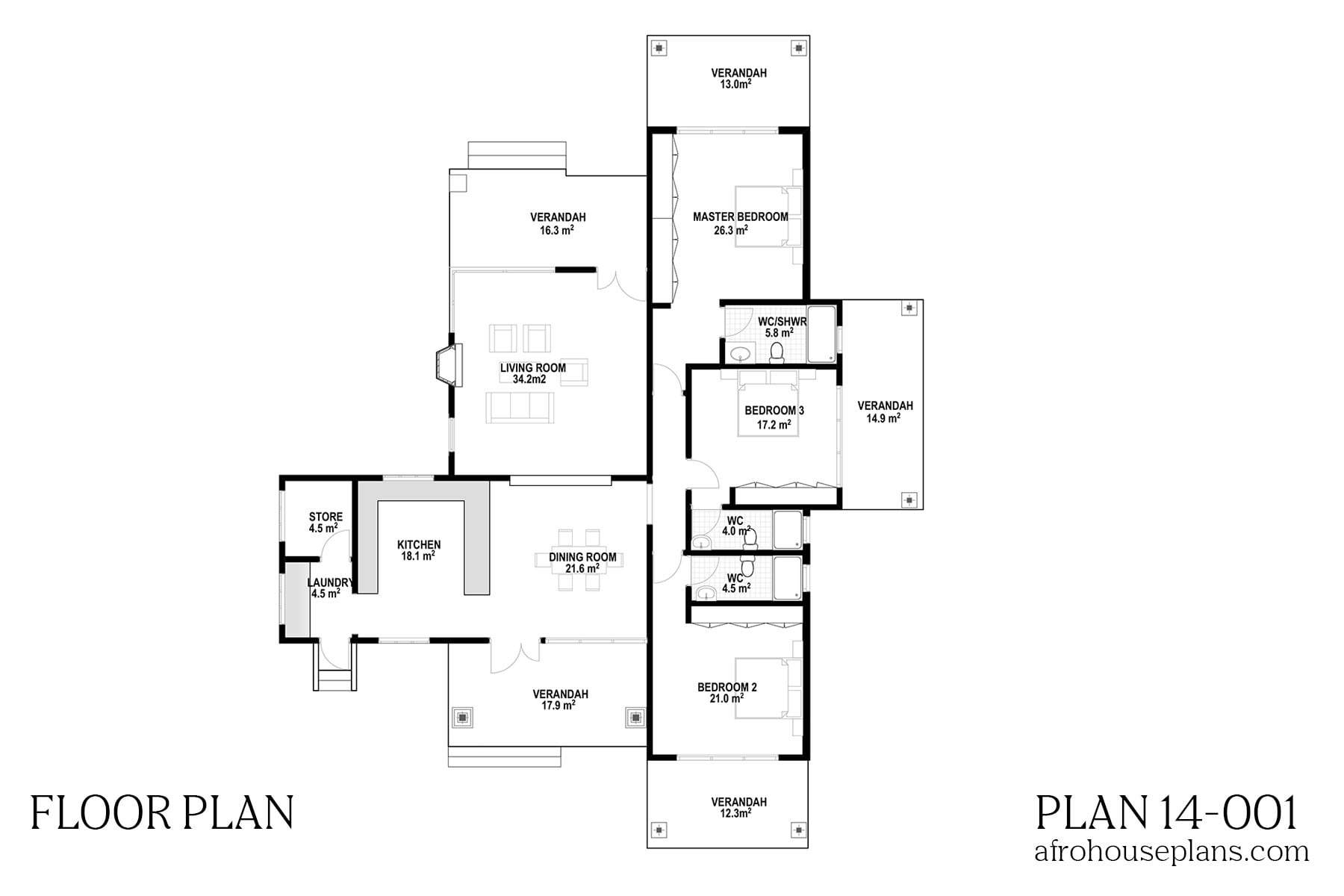

|Luxurious 3 Bedrooms Maisonette with an open layout and inviting interior. The living room is spacious with a fireplace at the side and a kitchen connected with the dining.|
WHAT’S INCLUDED IN THIS PLAN SET
- Cover Sheet – May include an index, front view of the home, definitions, etc.
- Foundation Plan – Typically includes dimensioned foundation plan with footing details.
- Dimensioned Floor Plan – This includes labels for all windows and sections.

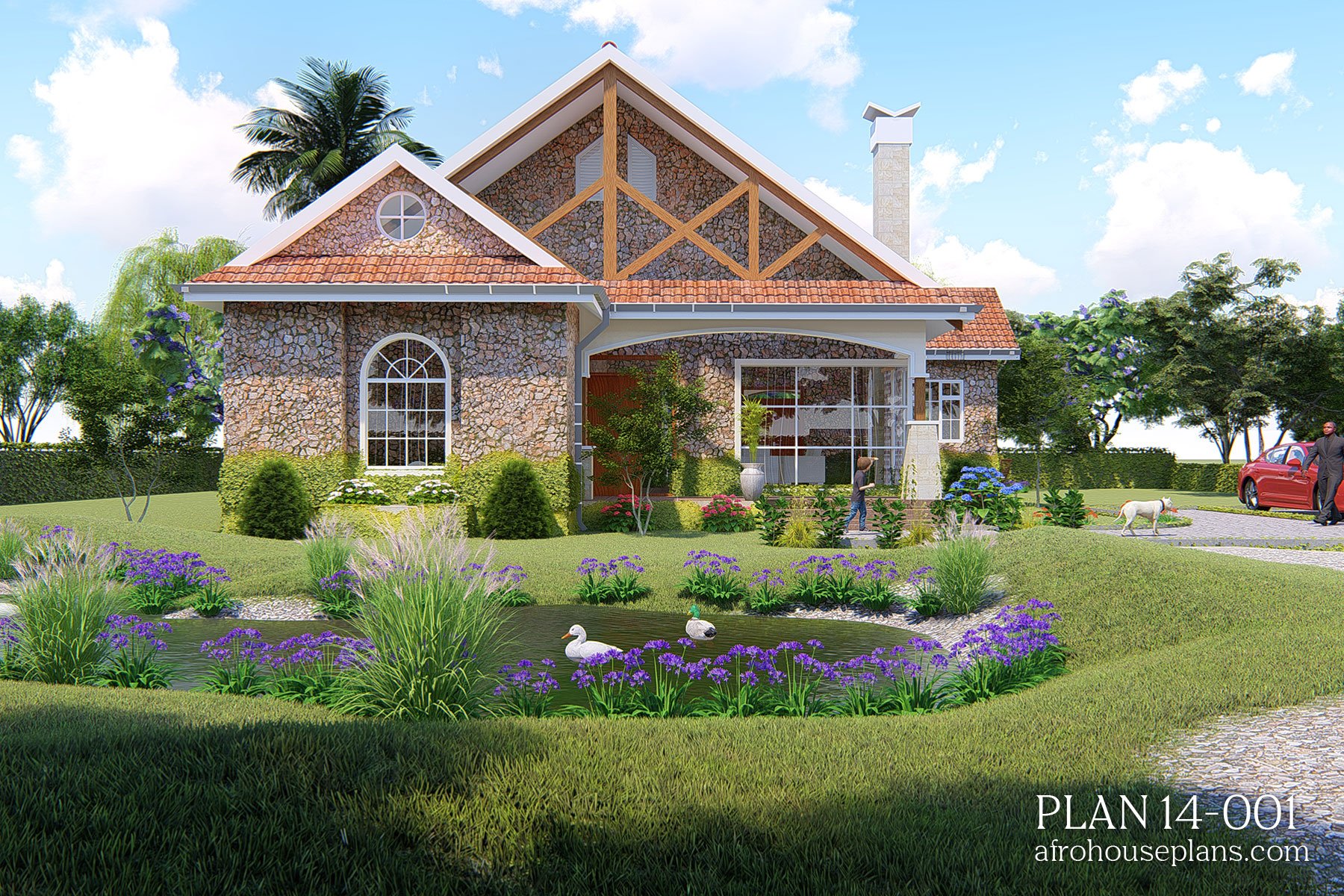

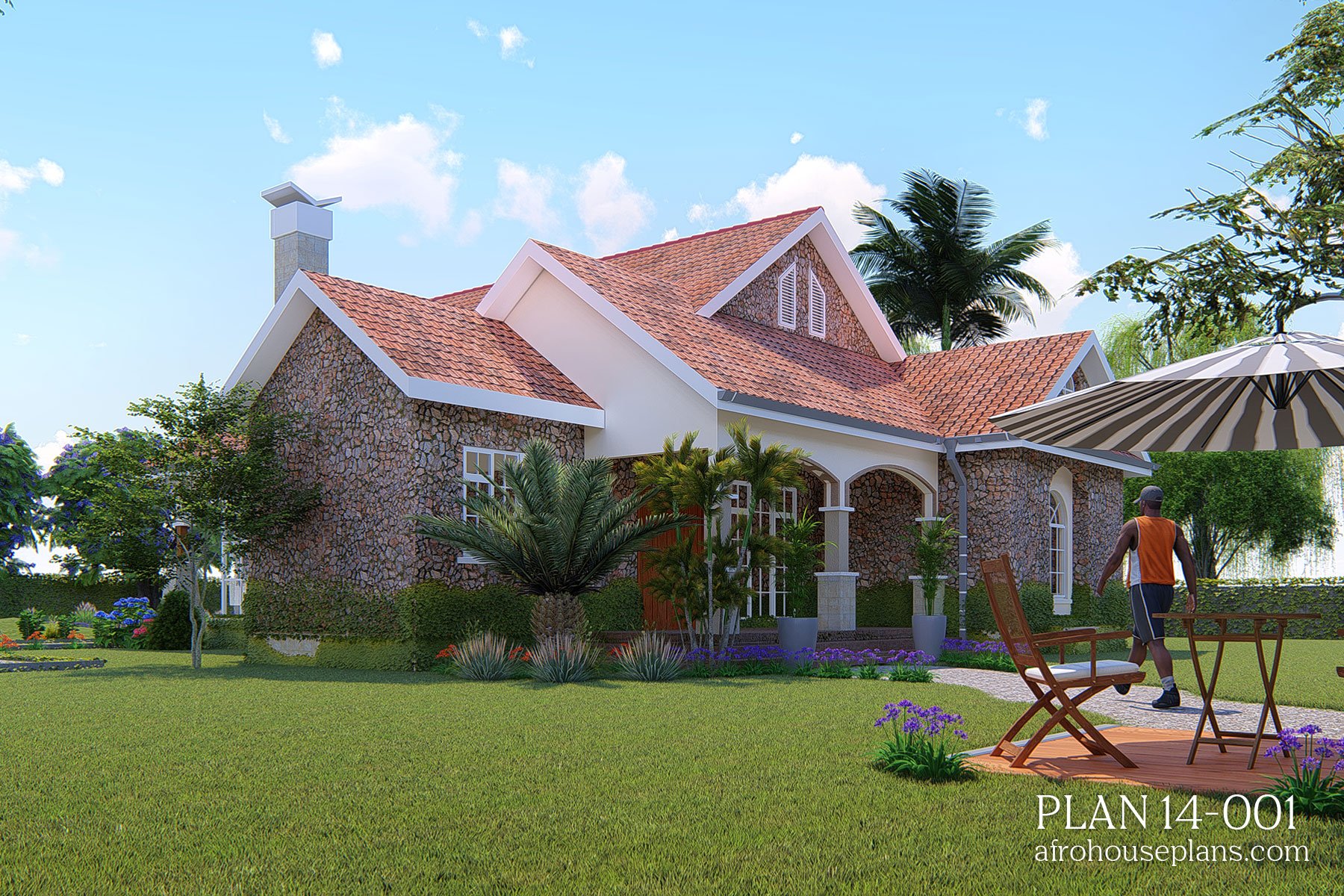

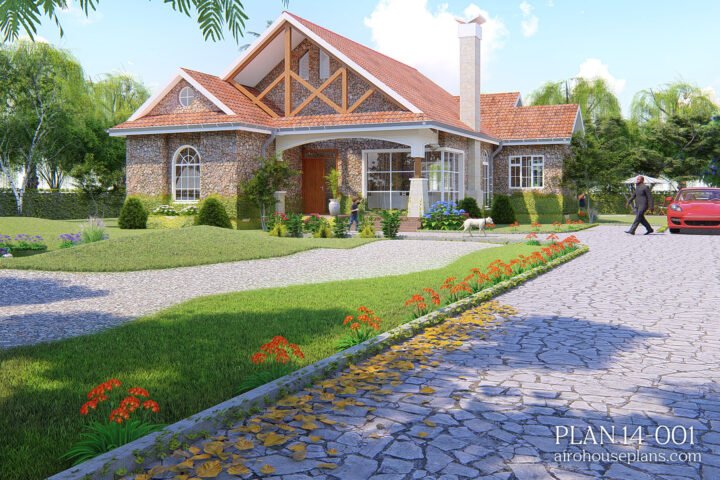

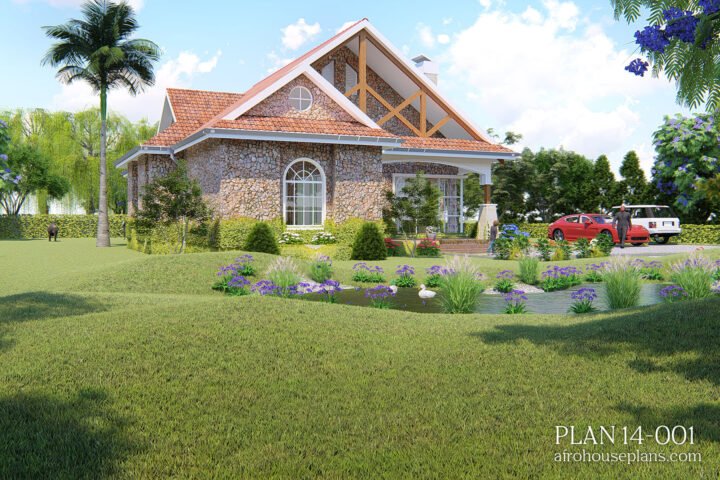

- Exterior Views – Four exterior views of the residence with other miscellaneous details.
- Roof Plan – Bird’s eye view showing all ridges, valleys, and other necessary information.
- Schematic Electrical Plan – Displays all lighting fixtures, outlets, and other necessary electrical items.
- Septic Tank & Soakage pit drawings
MODIFY THIS PLAN
Our designers can customize this plan to your exact specifications.
Requesting a quote is easy and fast!
Dining room: 1
Living room: 1
