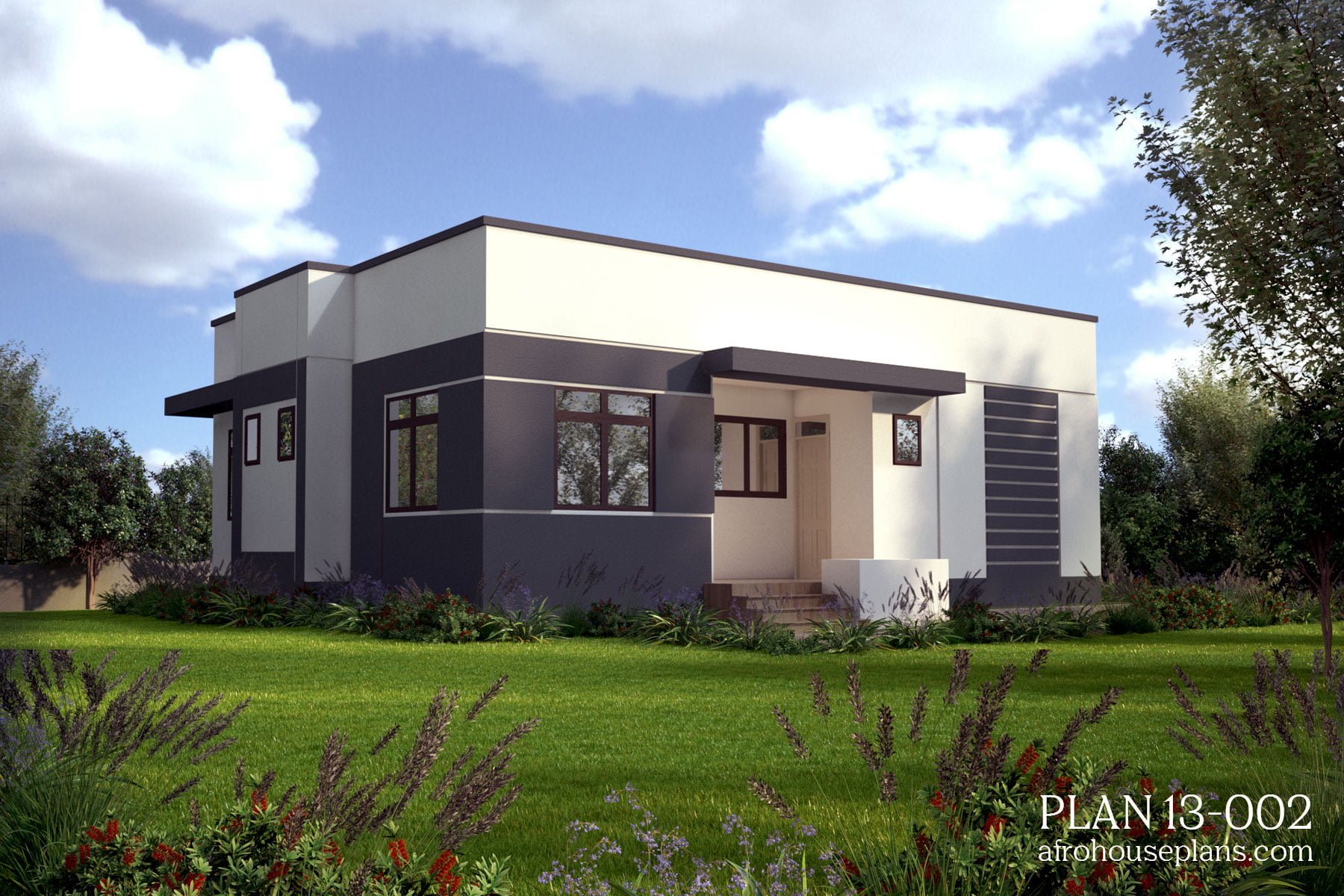

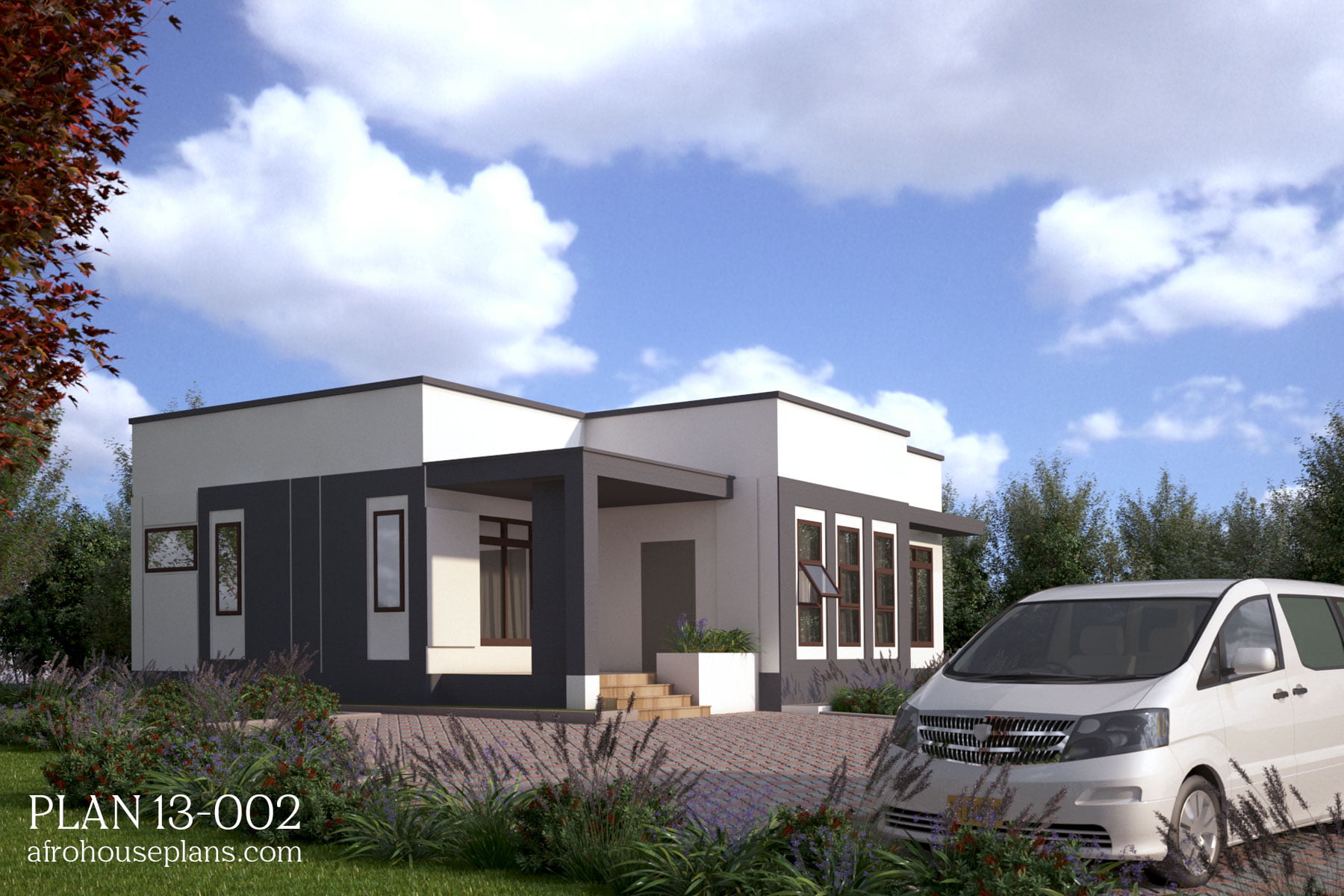

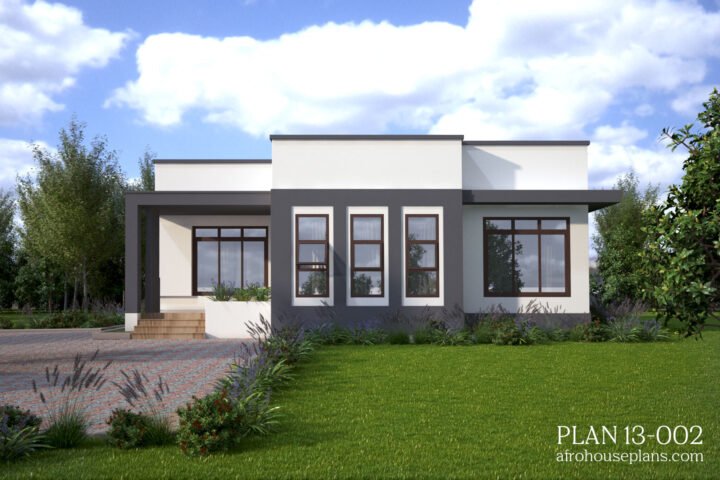

|A modern 3 bedrooms house design that splits the master suite on one side and other bedrooms on the other side. The center space has an open layout providing a clear view of the kitchen from the living room. Affordable and portable, this floor plan is perfect for a small family or for a real estate investment. It consists of intricate detailing and ample space for comfort and convenience.|
Enjoy an open plan layout in this futuristic 3 bedrooms house design where bedrooms are on one side and the master suite is on the other. The perfect solution for those who love the idea of being close to their children while they sleep, while still being able to have a peaceful night’s sleep.
WHAT’S INCLUDED IN THIS PLAN SET
- Cover Sheet – May include an index, front view of the home, definitions, etc.
- Foundation Plan – Typically includes dimensioned foundation plan with footing details.

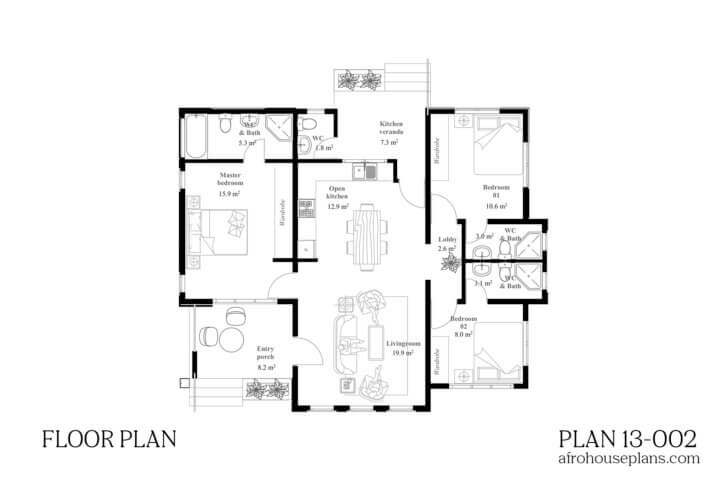

- Dimensioned Floor Plan – Electrical may be shown.
- Exterior Views – Four exterior views of the residence with other miscellaneous details.
- Roof Plan – Bird’s eye view showing all ridges, valleys, and other necessary information.
- Electrical Plan – Displays all lighting fixtures, outlets, and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches and arcs are not shown and should be located by the owner/contractor at the site.
NOT QUITE RIGHT?
Our designers can customize this plan to your exact specifications.
Requesting a quote is easy and fast!
Dining room: 1
Living room: 1
