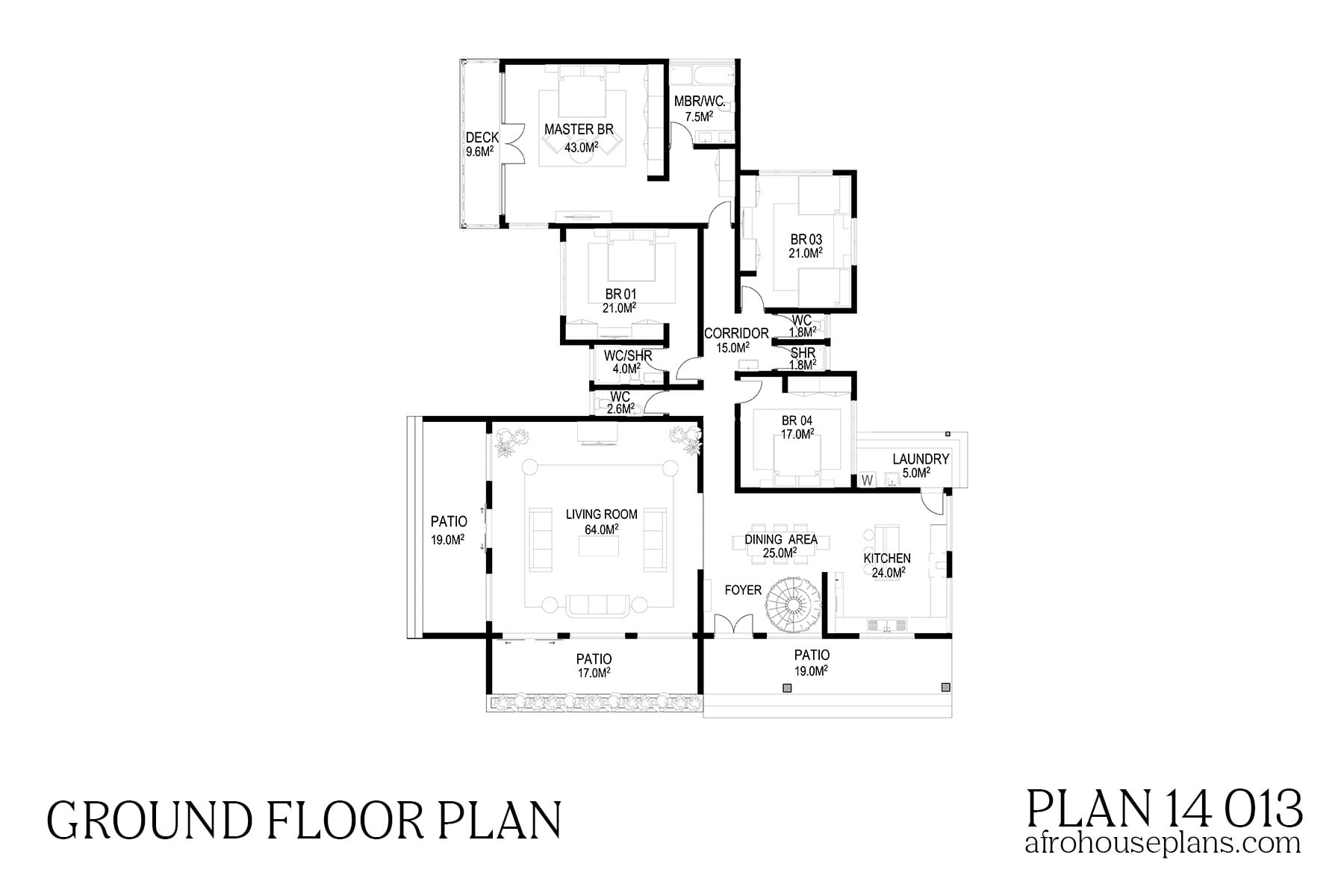

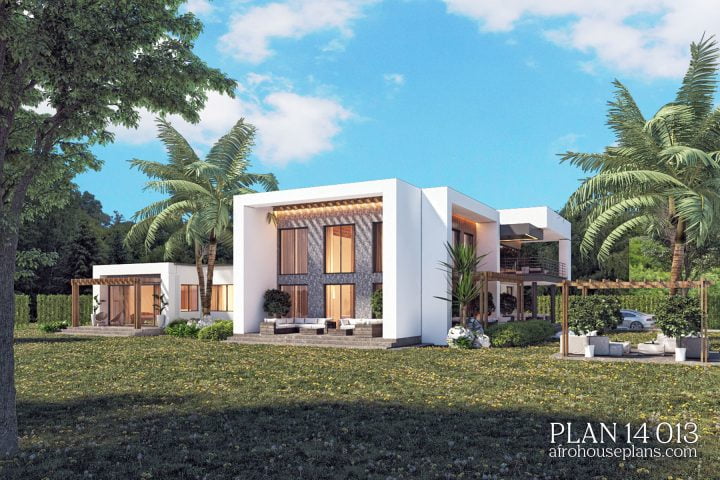

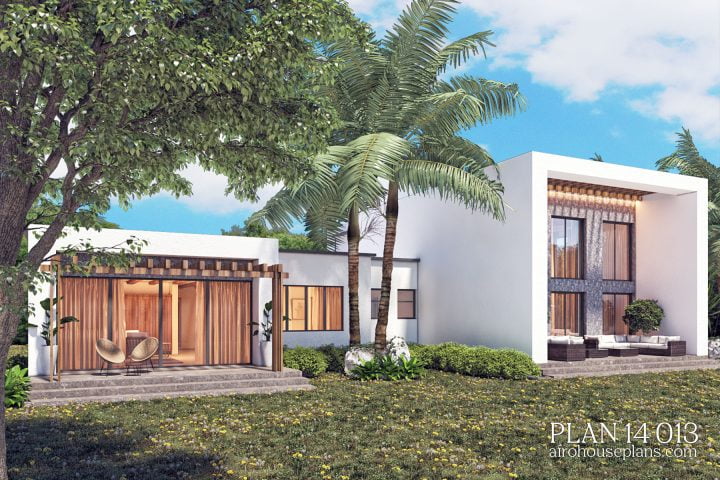

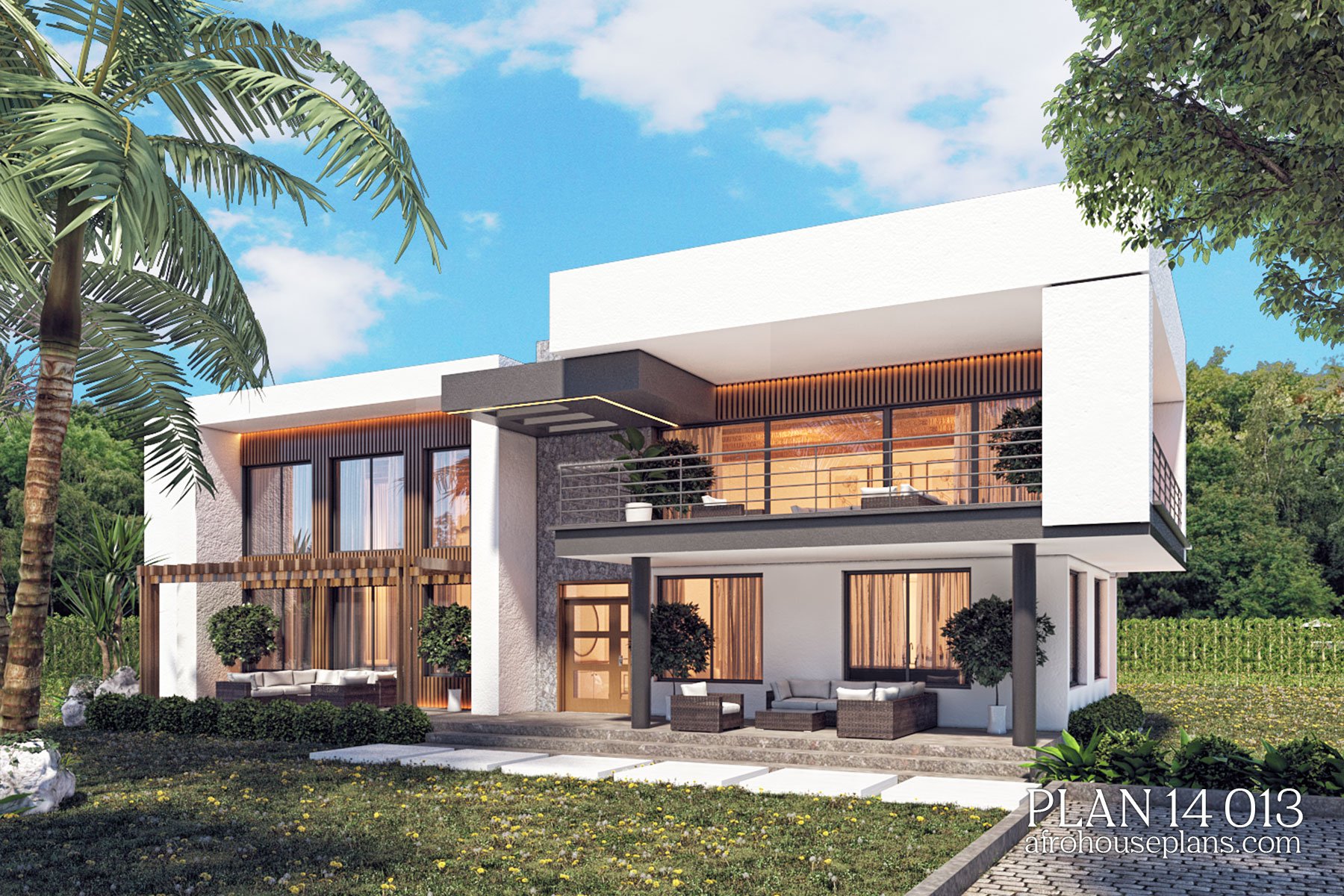

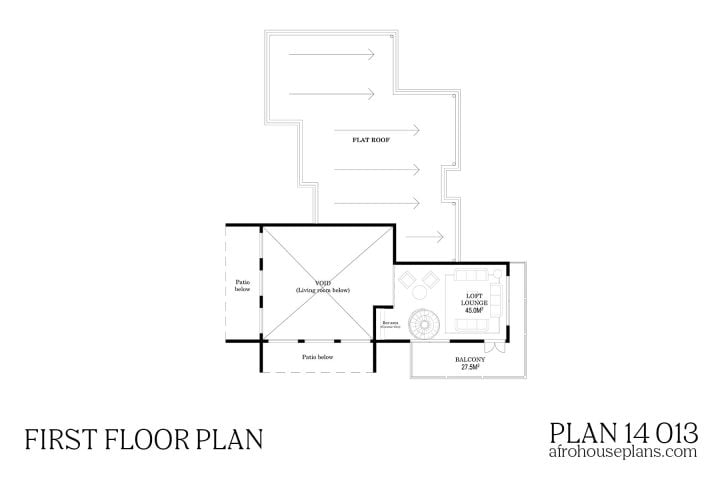

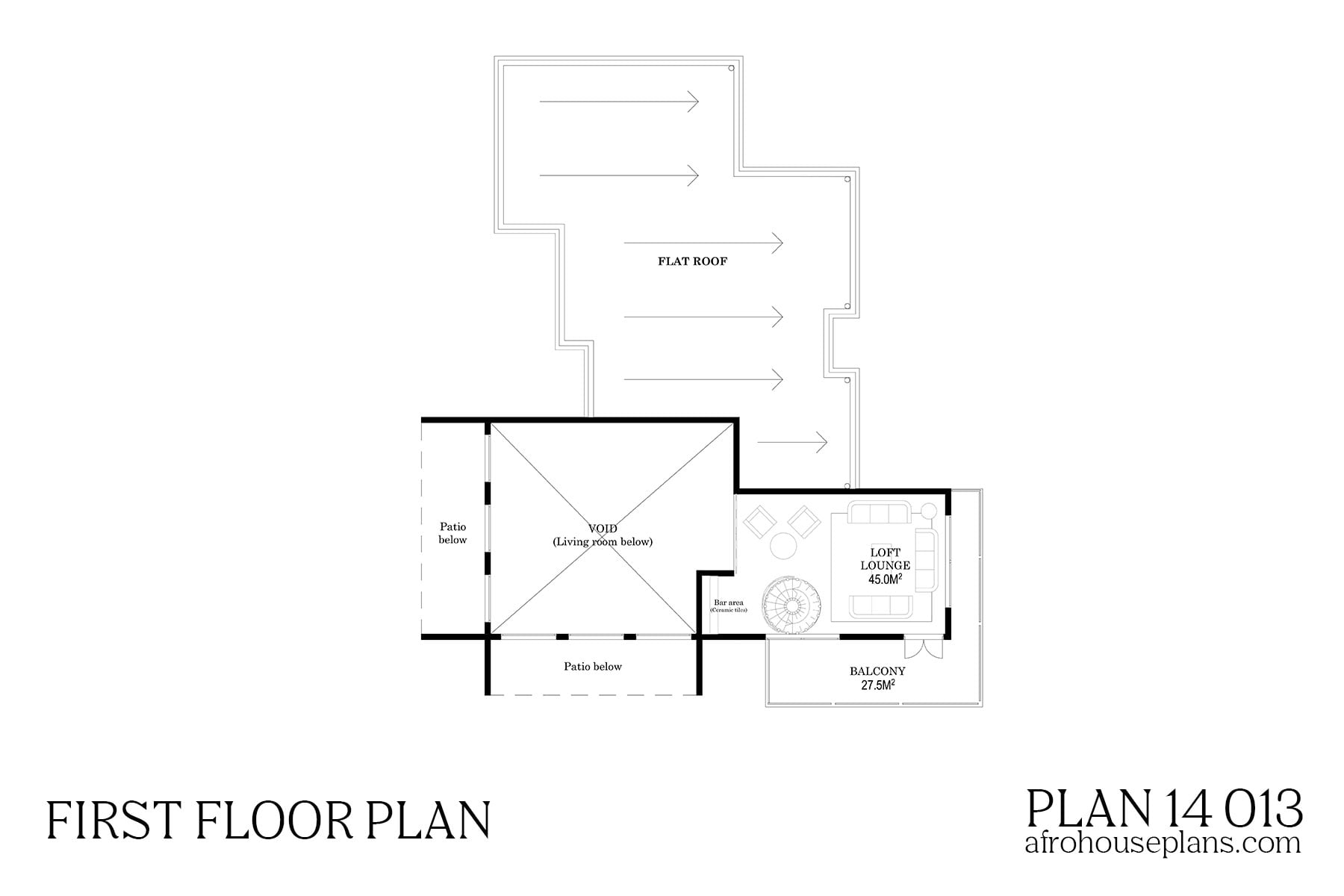

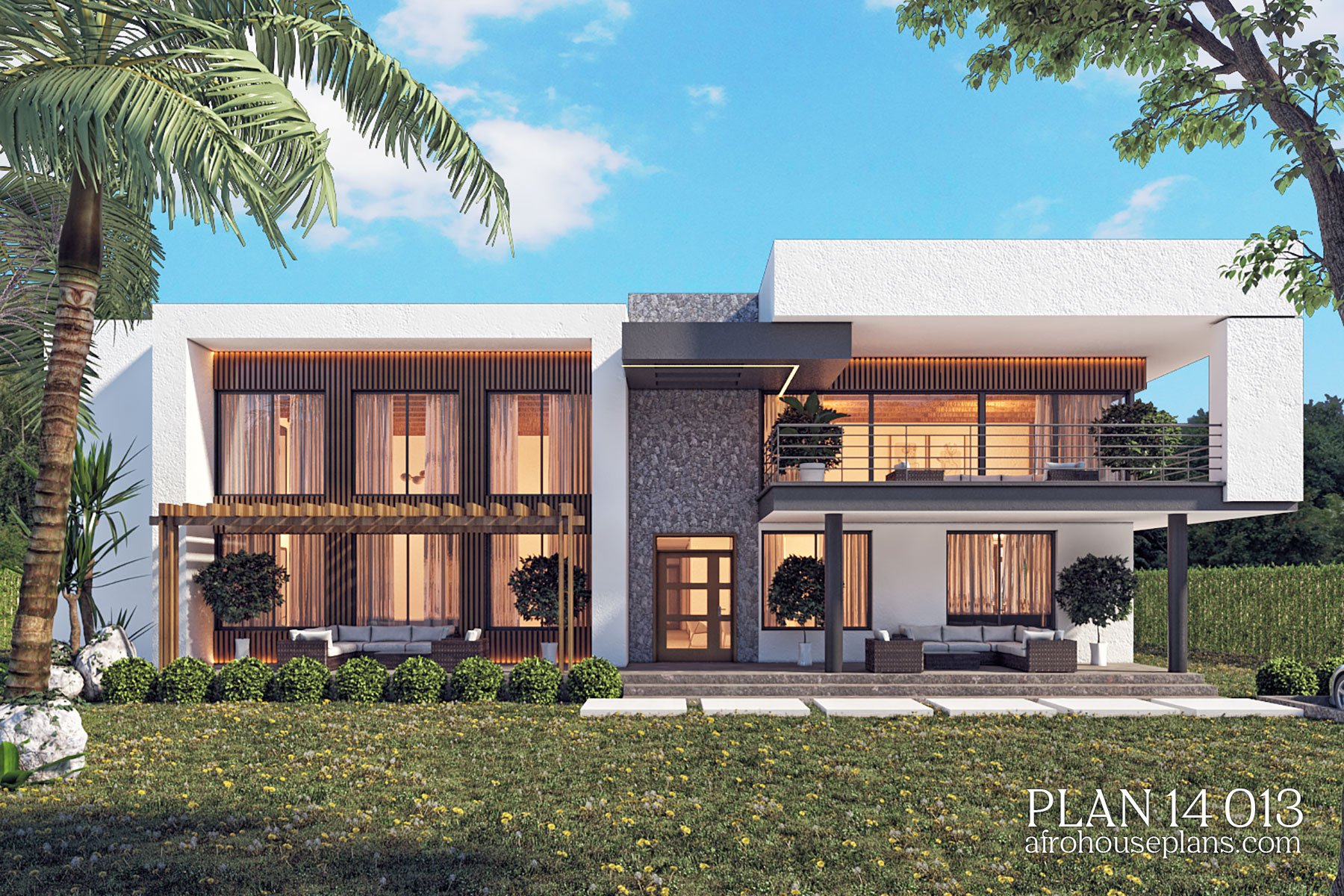

Modern 4 bedroom house plan with an open layout on the ground floor 5 baths modern kitchen and dining and a terrace. A luxury spacious loft lounge is on the first floor where you can see the living room below. The living room has a double ceiling that is open throughout with large windows on the sides.
WHAT’S INCLUDED IN THIS PLAN SET
Cover Sheet – May include an index, front view of the home, definitions, etc.
Foundation Plan – Typically includes dimensioned foundation plan with footing details.
Dimensioned Floor Plan – This includes labels for all windows and sections.
Exterior Views – Four exterior views of the residence with other miscellaneous details.
Roof Plan – Bird’s eye view showing all ridges, valleys, and other necessary information.
Schematic Electrical Plan – Displays all lighting fixtures, outlets, and other necessary electrical items.
Septic Tank & Soakage pit drawings
MODIFY THIS PLAN
Our designers can customize this plan to your exact specifications.
Requesting a quote is easy and fast!
