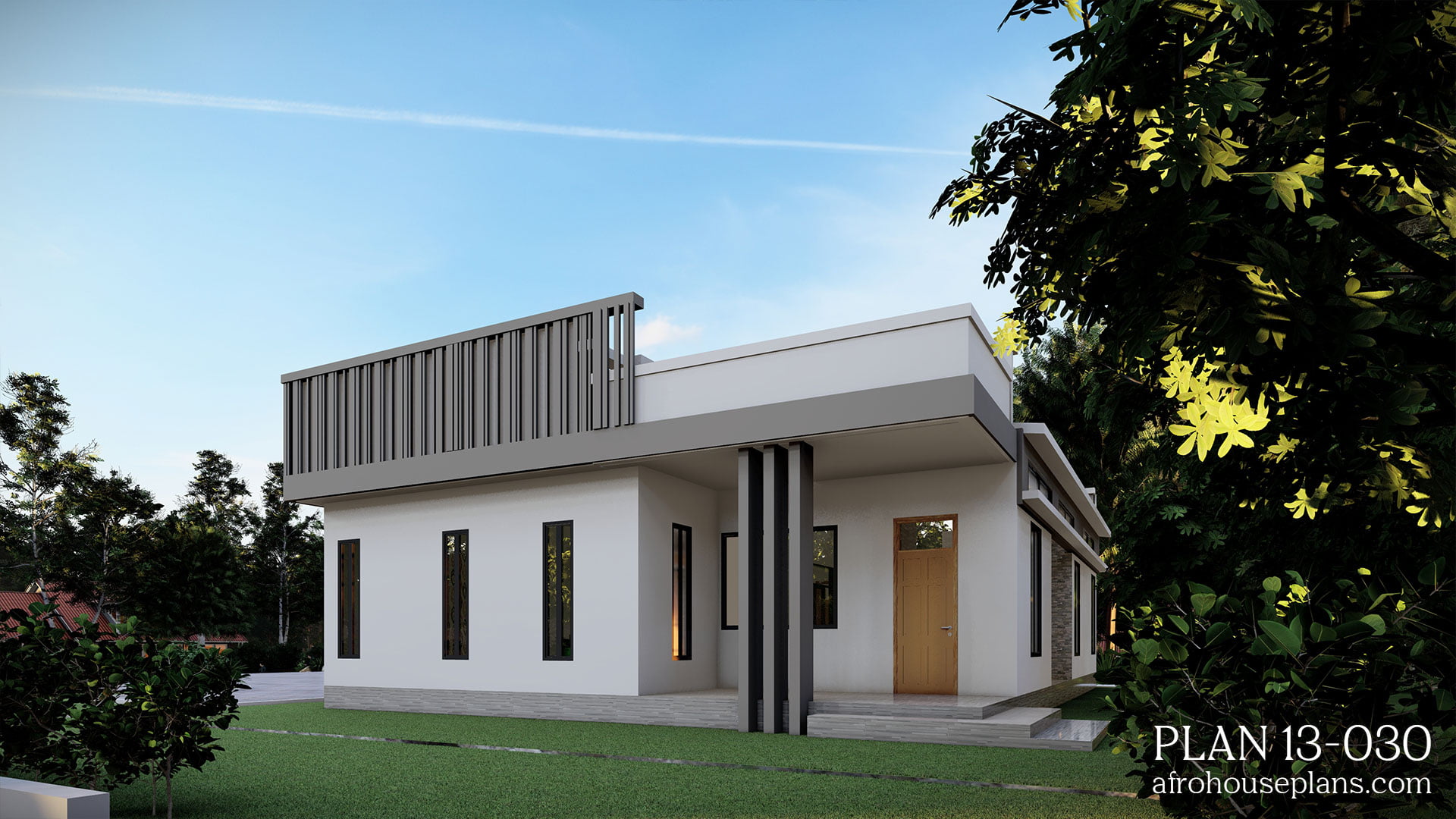

This 3 Bedrooms House Design is ideal for modest families who want to live comfortably and privately while keeping connected in their living areas. The three-roomed house plans feature a courtyard and verandah for a modern and striking look. Excellent architectural design with plenty of natural light and ventilation.
WHAT’S INCLUDED IN THIS PLAN SET
Cover Sheet – May include an index, front view of the home, definitions, etc.
Foundation Plan – Typically includes dimensioned foundation plan with footing details.

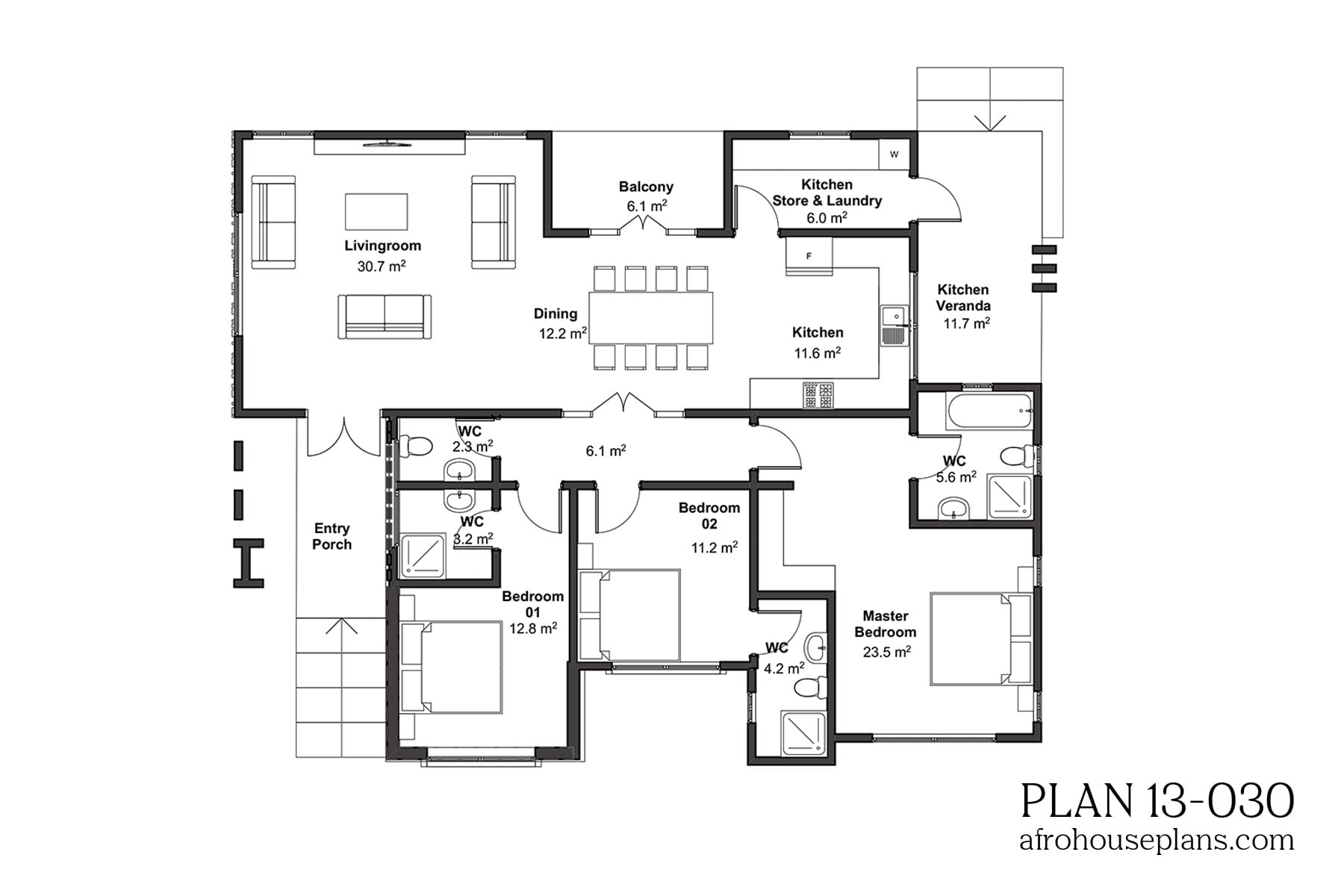

Dimensioned Floor Plan – This includes labels for all windows and sections.

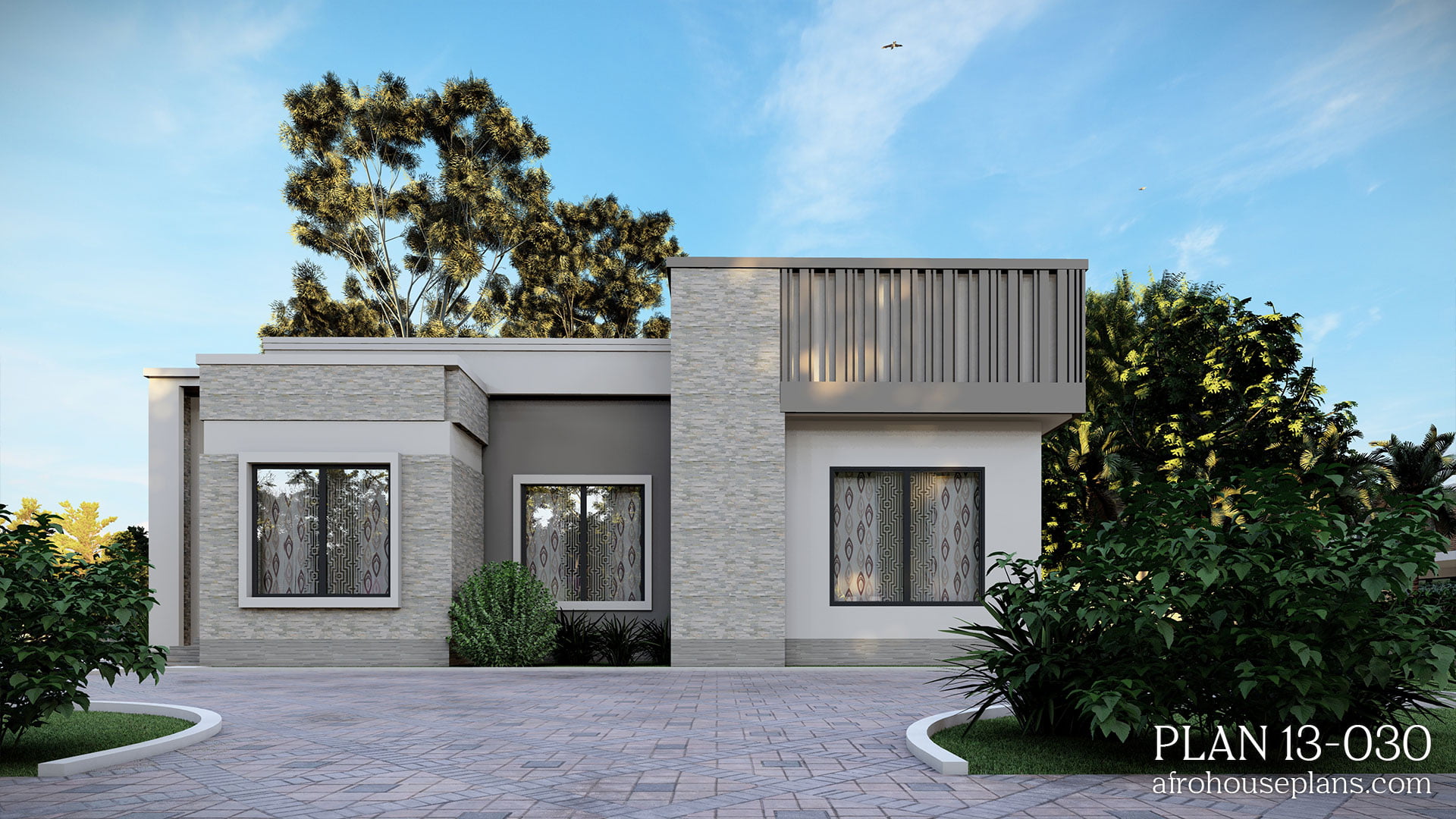

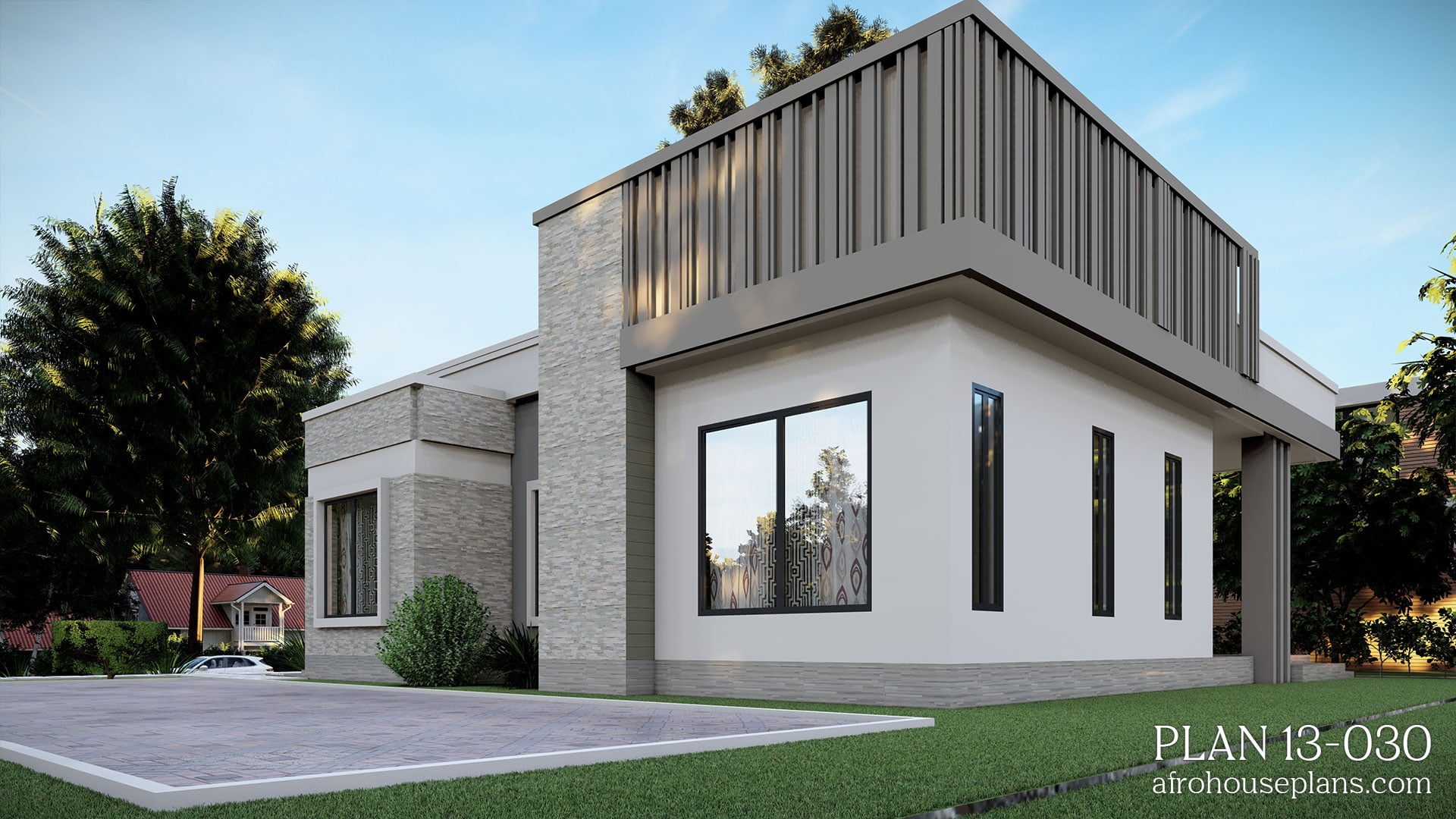

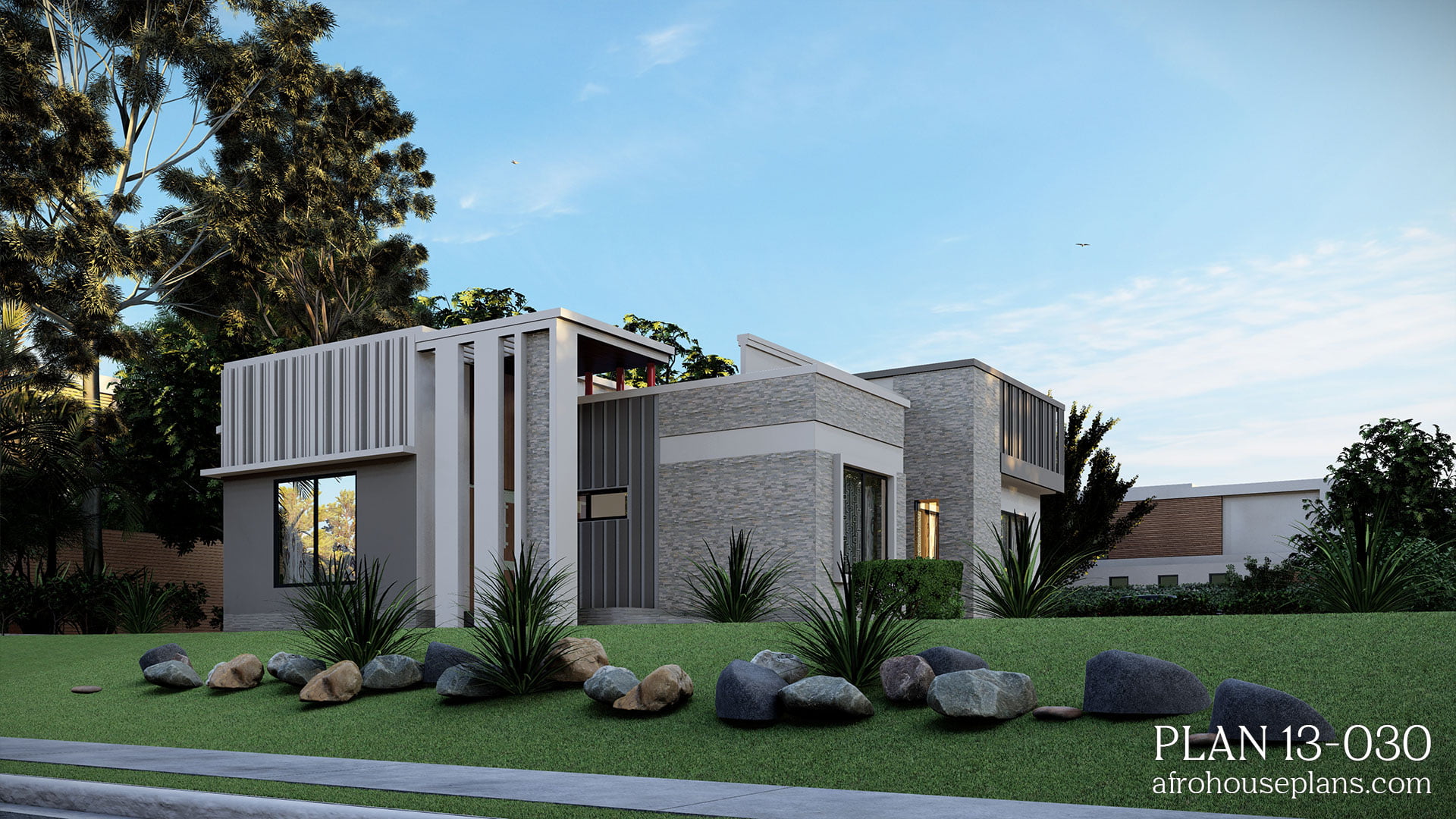

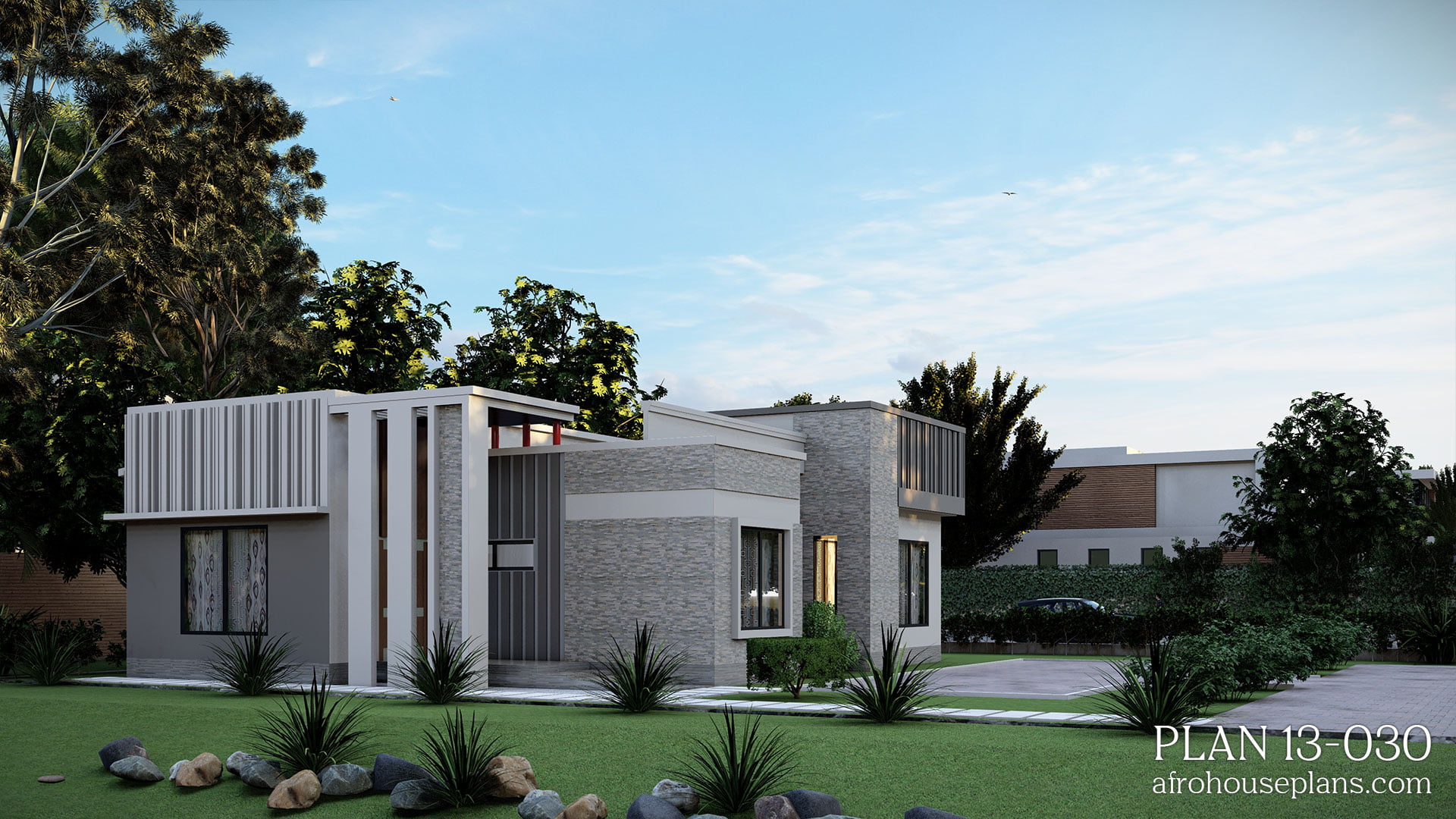

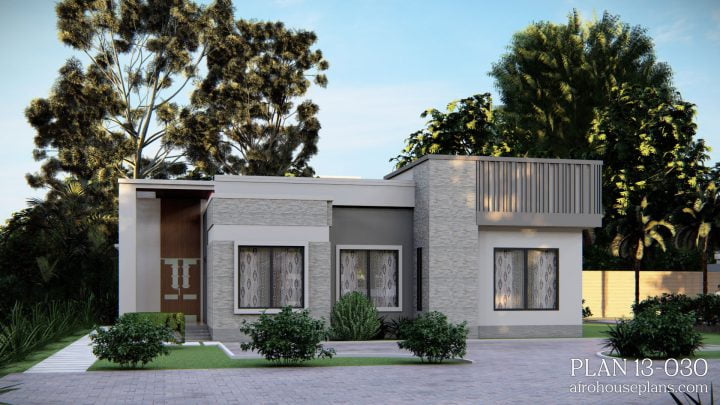

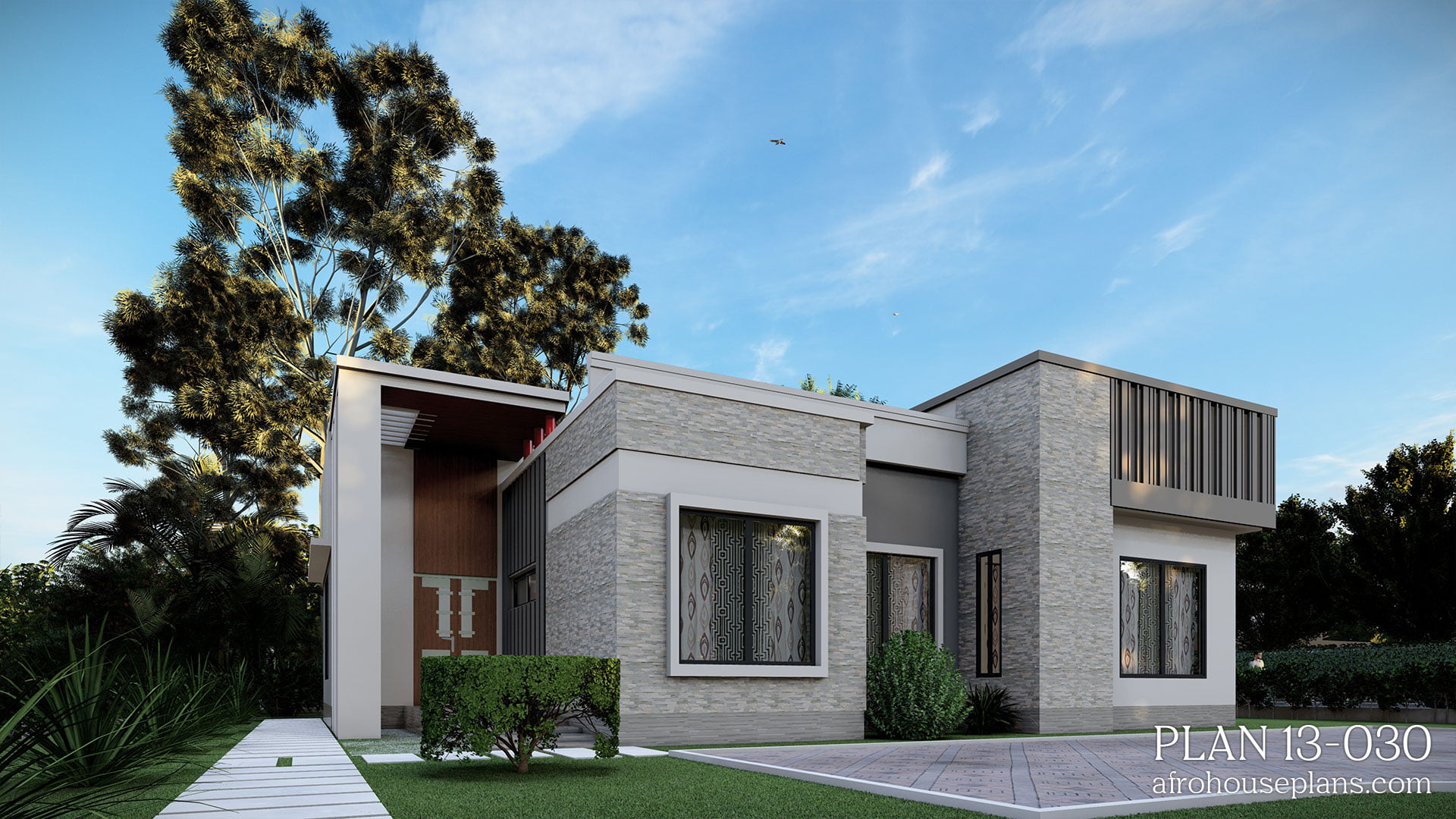

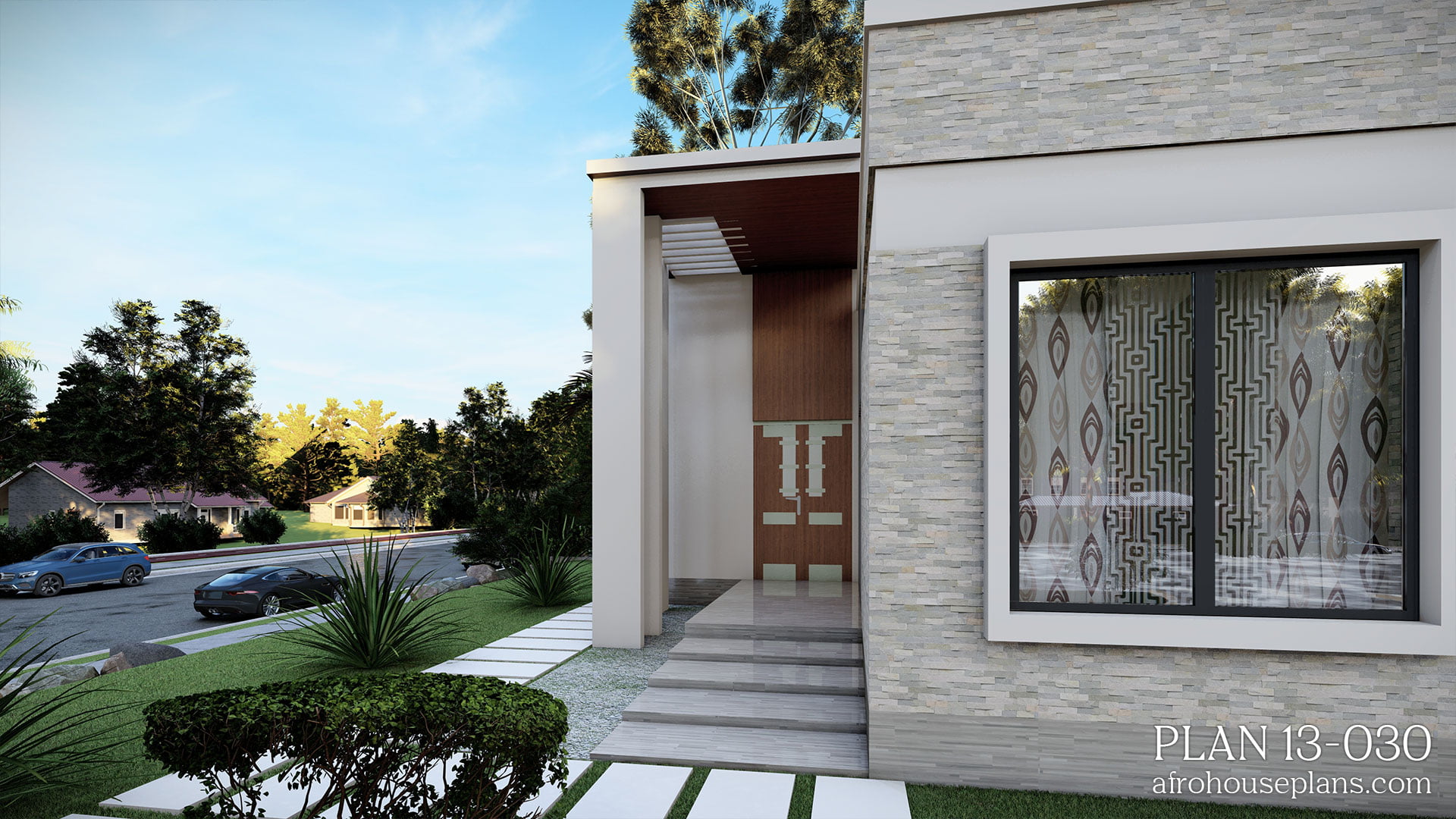

Exterior Views – Four exterior views of the residence with other miscellaneous details.
Roof Plan – Bird’s eye view showing all ridges, valleys, and other necessary information.
Schematic Electrical Plan – Displays all lighting fixtures, outlets, and other necessary electrical items.
Septic Tank & Soakage pit drawings
MODIFY THIS PLAN
Our designers can customize this plan to your exact specifications.
Requesting a quote is easy and fast!
